Description:
| ENGINE: | CG200 | ENGINE TYPE | SINGLE CYLINDER, AIR-COOLED, FOUR-STROKE |
| DISPLACEMENT: | 196.249CC | MAX. POWER: | 11/7500KW/R/MIN |
| MAX. TORQUE: | 16/6500N.M./RPM | IGNITION TYPE: | CDI |
| START SYSTEM: | ELECTRICAL/KICK | TRANSMISSION: | CHAIN DRIVE |
| TYRE: | OFF ROAD DEEP TEETH TIRES | BRAKE: | FRONT AND REAR DISC |

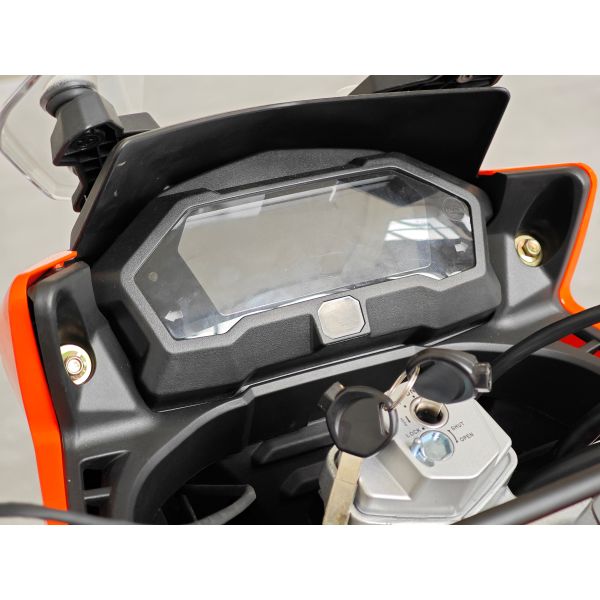

CG200CC engine, Keihin carburetor, maintenance-free battery, inverted front shock absorber, single rear shock absorber with cradle, shock absorber guard, digital instrument, front and rear mesh wheels, Yuanxing deep tooth tires, large plate flat fork, aluminum alloy muffler, front and rear disc brakes. LED lights throughout the vehicle.
Specifications:
| Item | Parameter |
| Dimensions (Length x Width x Height) | 2150×810×1200mm |
| Seat Height | 880mm |
| Wheelbase | 1435mm |
| Minimum Ground Clearance | 240mm |
| Maximum Load | 150Kg |
| Steering Angle | 35 |
| Side Stand Tilt Angle | 14 |
| Ride Capacity | 2 Person |
| Dry Weight | 136kg |
| Fuel Tank Capacity | 14L |
| Front Braking System | Disc brakes |
| Rear Braking System | Disc brakes |
| Front Tire Size | 90/100-21 |
| Rear Tire Size | 120/100-18 |
| Battery Size | 12V/7Ah |
| Engine Type | Single cylinder, air-cooled, four-stroke |
| Engine displacement | 196.249 |
| Bore x stroke | 63.5×62 |
| Compression ratio | 9.0:1 |
| Maximum power | 11/7500(kW/r/min) |
| Maximum torque | 16/6500(N·m/r/min) |
| Maximum speed | 90km/h |
| Start-up acceleration | 14S |
| Overtaking acceleration | 13S |
| Lubrication method | Pressure, Splash |
| Oil volume | 1.5L |
| Clutch type | Multi-plate wet clutch, manual |
| Ignition method | CDI |
| Spark plug | A8RTC |
| Starting method | Electric kick starter |
| Transmission method | Chain drive |
| Final gear ratio | 15:46 |
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. Packaging Parameters:
A: The size of SKD is 1890×460×840mm, and a 40HQ container can hold 93 units.
The size of CKD is 1460×760×380mm, and a 40HQ container can hold 149 units.
Q6. Minimum Order Quantity:
A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.
Q7. After-sales Service:
We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
